Energy without end: streaming power plants 02: tidal power plants 01

Tidal power plant with turbine in a dam during low
                tide current and high tide current, schematic
Tidal power plants with turbines in a dam between low and high tide, schema [1]

by Michael Palomino (2014 / 2022)

Teilen / share:

Facebook








Energy without end: tide power plants 01

Examples of tidal energy (tidal power plant) - 24 hours day and night energy for free!

The tide flows through small tunnels with turbines and in this way is generating electricity.

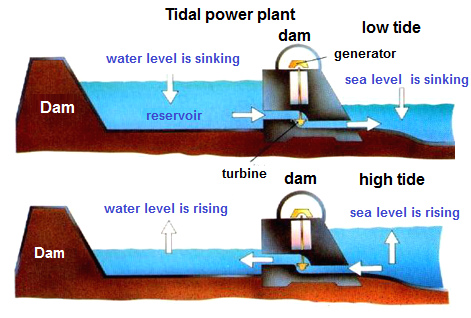

Tidal power plant with turbine in
                                  a dam during low tide current and high
                                  tide current, schematic
Tidal power plant with turbine in a dam during low tide current and high tide current, schematic [1].

Disadvantage is that navigation is blocked. The advantage is that a bridge has been built, and revisions and repairs can take place simply by closing off a tunnel.
Map showing the position of the
                                  tidal power plants Brouwersdam with
                                  Grevelingenmeer in Holland and
                                  "La Rance" near Saint-Malo
                                  in Brittany in France
Map showing the position of the tidal power plants Brouwersdam with Grevelingenmeer in Holland and "La Rance" near Saint-Malo in Brittany in France [2].

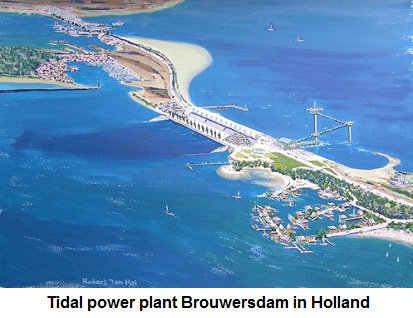

Brouwersdam tidal power station
                                  in Holland on the Grevelingenmeer,
                                  built in 1971
Brouwersdam tidal power station in Holland on the Grevelingenmeer, built in 1971 [3].

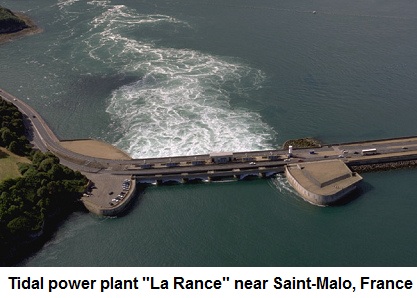

"La Rance" tidal power
                                  plant near Saint-Malo, Brittany,
                                  France
"La Rance" tidal power plant near Saint-Malo, Brittany, France [4]

Gezeiten-Parks
Es gibt auch die Möglichkeit von Gezeiten-Parks, je nachdem mit sichtbarem Pfosten oder tief am Boden. Die Installation ist viel billiger als bei einem Damm mit Tunneln, aber die Wartung wird dann unter Wasser etwas aufwändiger.

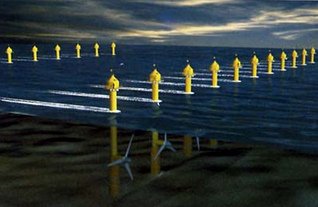

Tidal fence power plant, scheme
                                  ("fence power plant")
Tidal fence power plant, scheme ("fence power plant") [5].

Advantage: Navigation is not blocked. Disadvantage: No bridge is built, and revisions and repairs become somewhat laborious under water without easy block of the tidal stream.

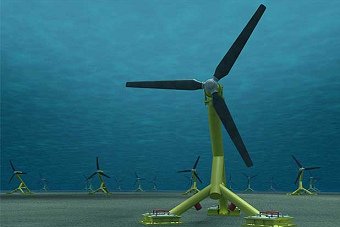

Tidal stream turbine for tidal
                                  parks (schematic) by "Hammerfest
                                  Strøm" or "ANDRITZ HYDRO
                                  Hammerfest" - each tidal turbine
                                  has an output of 1 MW per year
Tidal stream turbine for tidal parks (schematic) by "Hammerfest Strøm" or "ANDRITZ HYDRO Hammerfest" - each tidal turbine has an output of 1 MW per year [6].

Contact data of "Hammerfest Strøm" resp. "ANDRITZ HYDRO Hammerfest" [web37]:
Web site: http://www.hammerfeststrom.com
Andritz Hydro Hammerfest,
                                          Logo
Norway:
Scotland:
ANDRITZ HYDRO Hammerfest
Sjøgata 6, P.O Box 403
NO-9615 Hammerfest (Norway)
Tel.: +47 78 40 62 00
E-Mail: contact@hammerfeststrom.com

ANDRITZ HYDRO Hammerfest
Innovation Centre
1 Ainslie Road
Hillington Park
Glasgow G52 4RU (Scotland)
Tel.: +44 (0) 141 585 6447
Fax: +44 (0) 141 585 6448
E-mail: contact@hammerfeststrom.com






<<     >>
